The humid coastal climate of the Chesapeake Bay region imposes unique constraints on deep foundation systems in Baltimore. With high groundwater tables and variable alluvial deposits from the Patapsco River, diaphragm wall design must account for hydrostatic pressures and soft soil lenses that can compromise excavation stability. Our team integrates site-specific geotechnical data with numerical modeling to produce walls that resist lateral earth loads while controlling seepage. Before finalizing the wall geometry, we often recommend a resistivity survey to map subsurface stratigraphy and identify permeable layers that could affect slurry trench stability.

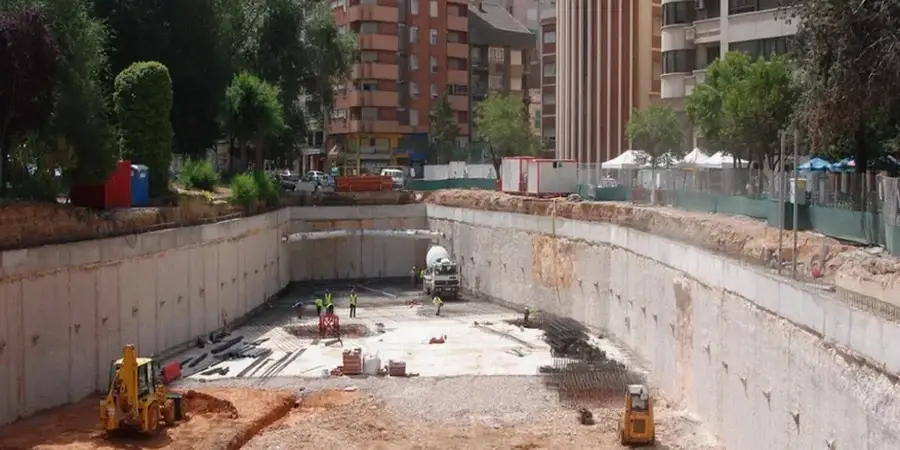

Diaphragm walls in Baltimore must resist both lateral earth pressures and tidal groundwater variations from the Chesapeake Bay estuary.
Method and coverage
Regional considerations
Baltimore sits within a moderate seismic zone (ASCE 7 Site Class C/D) with a peak ground acceleration of 0.08–0.14 g for the 2% in 50-year event. Although not high, differential movement between diaphragm wall panels during seismic loading can cause joint leakage and structural distress. The 2011 Mineral, Virginia earthquake (M5.8) was felt strongly in Baltimore, reminding engineers that local soil amplification from thick Pleistocene deposits cannot be ignored. A diaphragm wall designed without considering cyclic degradation of the clay layers beneath Federal Hill or Fells Point may experience unacceptable lateral displacements during a design-level event.
Process video
Standards that apply
ASCE 7-22 Minimum Design Loads for Buildings and Other Structures, IBC 2021 Chapter 18 – Soils and Foundations, ACI 318-19 Building Code Requirements for Structural Concrete, ASTM D1586-18 Standard Test Method for Standard Penetration Test (SPT)
Related services
Structural Design & Detailing
Complete wall dimensioning, reinforcement schedules, and joint detailing per ACI 318 and IBC. Includes serviceability checks for crack width and deflection under hydrostatic and seismic loads.
Slurry Trench Stability Analysis
Assessment of bentonite/polymer slurry density and trench stability during excavation. We model fluid loss into permeable strata and recommend additives to prevent collapse in Baltimore's sandy alluvium.
Typical parameters
Common questions
What is a diaphragm wall and when is it used in Baltimore?
A diaphragm wall is a reinforced concrete wall constructed in a slurry-supported trench. It is used for deep basements, cut-and-cover tunnels, and below-grade parking structures where groundwater control and excavation stability are critical. In Baltimore, common applications include high-rise foundations near the Inner Harbor and retaining walls for highway interchanges.
What soil conditions in Baltimore affect diaphragm wall design?
The subsurface profile typically comprises fill materials over Pleistocene alluvial deposits of sand, silt, and clay, underlain by weathered schist or gneiss at depth. Variable groundwater levels (1–4 m below grade) and buried channels filled with soft organic clay can create localized instability during trenching. A thorough site investigation including SPT and CPT is essential.
How much does diaphragm wall design cost in Baltimore?
Design fees for a typical urban project in Baltimore range from US$2,000 to US$6,280, depending on wall length, depth, and complexity of the soil profile. This includes structural calculations, stability analysis, and reinforcement detailing. Additional costs apply if a site-specific seismic analysis or numerical modeling (FEM) is required.
How does diaphragm wall design differ from secant pile walls?
Diaphragm walls are monolithic concrete panels cast in situ, offering higher stiffness and watertightness compared to secant pile walls, which are formed by overlapping piles. In Baltimore's high groundwater conditions, diaphragm walls are preferred for deep excavations requiring strict seepage control, while secant piles are more economical for temporary shoring.
How long does the diaphragm wall design process take?
A typical design phase takes 4–8 weeks, including subsurface interpretation, structural modeling, and preparation of construction drawings. For complex projects involving seismic analysis or irregular geometries, the timeline may extend to 10–12 weeks. We coordinate with the geotechnical engineer to align the wall design with the available soil data.
