A common mistake we see with contractors in Baltimore is assuming the design bearing capacity from the geotechnical report is the final word. They pour footings based on those numbers without a field check. Then settlement cracks appear within the first year. The plate load test (PLT) is the only way to verify the actual bearing capacity and deformation modulus of the subgrade on your specific pad location. We have run hundreds of PLTs across the city, from the Inner Harbor fills to the weathered schist slopes in Roland Park. It is a direct, reliable measurement that saves you from over-design or under-performance. When the structural engineer wants a verified modulus, we pair the PLT with a flexible pavement design approach to match the loading assumptions.
The plate load test is the only field method that directly measures bearing capacity and deformation modulus under your actual loading conditions.
Method and coverage
Regional considerations
We worked on a 10-story residential tower in Locust Point where the geotechnical report showed 4 ksf allowable bearing capacity on the residual soils. The contractor started excavation and hit a pocket of soft clay that the borings had missed. A single PLT on the formation level would have caught that anomaly before the foundation contract was awarded. Instead, they had to mobilize a deep foundation solution mid-project. That delay cost three weeks and over $150,000. A plate load test on the exposed subgrade would have cost a fraction of that and given them the confidence to proceed. In Baltimore, with its complex mix of fill, marine clay, and weathered rock, you cannot afford to skip this verification step.
Standards that apply
ASTM D1196-20 – Standard Test Method for Nonrepetitive Static Plate Load Tests, ASTM D4394-17 – Standard Test Method for Determining In Situ Modulus of Deformation of Rock Mass, IBC 2021 – Section 1806 (Presumptive Load-Bearing Values), FHWA NHI-05-041 – Soils and Foundations Reference Manual
Related services

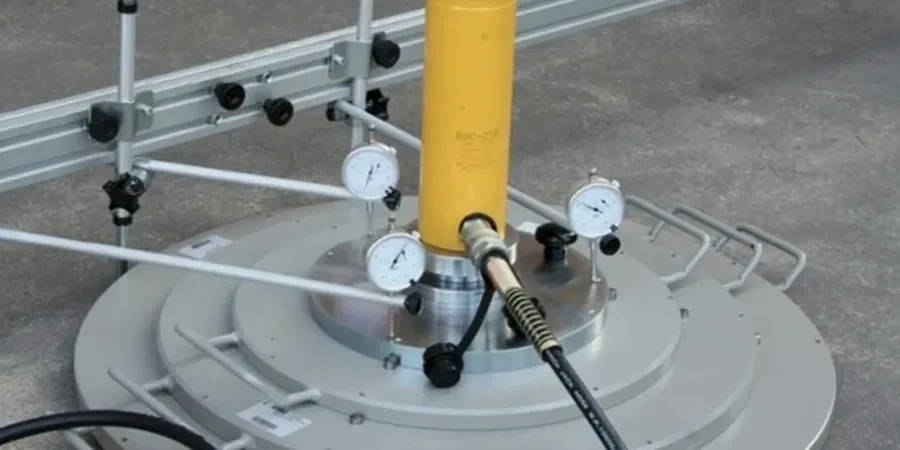

Standard Plate Load Test (PLT)
Rigid steel plate method per ASTM D1196 for bearing capacity and modulus of subgrade reaction. Ideal for shallow foundations, slab-on-grade, and pavement subgrade verification.
Cyclic Plate Load Test
Multiple loading and unloading cycles to measure resilient modulus and elastic rebound. Used for pavement design and quality control on compacted fills.
Rock Plate Load Test
Modified plate test on rock formations using a smaller plate (12 to 18 inches) and higher hydraulic capacity. Applied in Baltimore where weathered schist or gneiss is encountered at formation level.
Typical parameters
Common questions
How does the plate load test differ from the Standard Penetration Test (SPT)?
The SPT measures soil resistance during drilling and gives an N-value correlated to strength, but it does not directly measure bearing capacity or settlement. The plate load test actually loads the ground with a rigid plate and records settlement under controlled increments. You get a direct measurement of the modulus of subgrade reaction (k-value) and ultimate bearing capacity, which are the numbers your structural engineer needs for foundation design. In Baltimore, we often run PLTs on projects where the SPT results show borderline values, to confirm the design assumptions.
What size plate is typically used for a PLT in Baltimore?
We use a 30-inch diameter rigid steel plate as the standard, per ASTM D1196. For projects on rock or very stiff soils where higher loads are needed, we sometimes step down to a 12-inch plate with a larger hydraulic jack. The plate diameter should match the equivalent footing size as closely as practical. For large mat foundations, we run multiple tests at different locations to capture spatial variability across the site.
How much does a plate load test cost in Baltimore?
The typical cost for a standard plate load test in Baltimore ranges between US$840 and US$1,140, including mobilization, setup, testing, and a field report with load-settlement curves and calculated parameters. Costs can vary depending on site access, number of test locations, and whether a rock plate test is required. We recommend getting a quote after a site walk to confirm the specific scope.
