Electrical Resistivity / VES (Vertical Electrical Sounding) in Baltimore

A common oversight in Baltimore construction is assuming the subsurface is uniform across the city's varied terrain. The coastal plain deposits, weathered gneiss, and historic fill layers can hide buried stream channels or voids that conventional borings miss. Electrical resistivity / VES (Vertical Electrical Sounding) identifies these anomalies by measuring how different materials conduct electricity, revealing contrasts between clean sand, clay, water-filled fractures, or contaminated zones. In Baltimore, where many projects sit atop old industrial fill or reworked glaciolacustrine sediments, this method prevents surprises during excavation. Pairing resistivity with a dilatometer test provides stiffness data for settlement calculations, while MASW/VS30 captures shear-wave velocity for seismic site class according to ASCE 7.

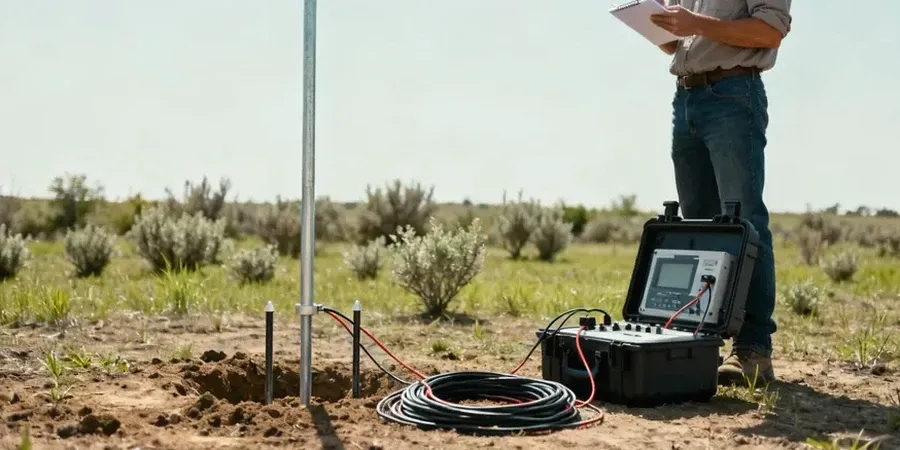

Illustrative image of Electrical resistivity / VES (Vertical Electrical Sounding) in Baltimore
In Baltimore's infill sites, a single VES profile can detect an abandoned well or buried rubble that would otherwise go unnoticed until excavation.

Method and coverage

Baltimore's urban fabric grew over the Patapsco River's floodplains and weathered crystalline bedrock, creating a complex mosaic of soil types. Electrical resistivity / VES surveys here typically use the Schlumberger array with current electrode spacings of 10 to 200 meters, resolving layering down to 30 or 40 meters depth. The data is inverted to produce 1D or 2D resistivity models that correlate with lithology, groundwater salinity, and contamination plumes. In coastal areas near the Inner Harbor, saltwater intrusion reduces resistivity sharply — a signature that helps delineate fresh vs. brackish zones. For projects requiring detailed stratigraphy, we combine VES with tomografía sísmica to cross‑validate velocity and resistivity contrasts, improving confidence in the interpreted profile.

Regional considerations

In Baltimore, many times we see that resistivity surveys are skipped because the site looks uniform on the surface. That assumption can be costly. A buried stream channel filled with soft organic silt may appear as a low-resistivity zone in the sounding, but without the survey it gets interpreted as firm clay. The result is differential settlement in a building or a road that sinks 8 inches within a year. Similarly, in areas near old gas stations or dry cleaners, resistivity detects non-aqueous phase liquids (NAPLs) as high-resistivity anomalies, guiding environmental remediation before construction. Ignoring these signals means financial and schedule risk that a simple VES profile would have mitigated.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.sbs

Standards that apply


ASTM D6431-18 (Standard Guide for Using the Direct Current Resistivity Method for Subsurface Investigation), ASTM D5088-15 (Standard Practice for Decontamination of Field Equipment Used at Waste Sites), IBC 2021 Chapter 18 (Soils and Foundations — site characterization requirements)

Related services

01

1D Vertical Electrical Sounding (VES)

Single‑point depth profiling using Schlumberger array up to 150 m spacing. Ideal for detecting layer boundaries, water table depth, and weathered bedrock surface. Delivered with 1D inverted model and interpreted lithology log.

02

2D Resistivity Imaging (ERT)

Multi‑electrode profile along a linear array, typically 48 electrodes at 2–5 m spacing. Produces a cross‑section of resistivity variations up to 20 m deep. Used for mapping old foundations, buried utilities, and contamination plumes.

03

3D Resistivity Tomography

Grid‑based survey covering up to 40 × 40 m area with multiple parallel lines. Output is a volumetric resistivity model. Best for complex sites where a single profile cannot capture lateral variability, such as brownfields or historic landfills.

Typical parameters


ParameterTypical value
Array typeSchlumberger, Wenner, or dipole-dipole
Maximum electrode spacing200 m (typically 100–150 m)
Depth of investigationUp to 40 m depending on spacing
Measured parameterApparent resistivity (Ω·m)
Inversion output1D layered model or 2D pseudo-section
Typical target resolution1–3 m layer thickness
Field productivity4–8 soundings per day (crew of 2)

Common questions

How deep can electrical resistivity / VES reach in Baltimore's ground conditions?

With electrode spacings up to 200 m, we routinely resolve layers down to 30–40 m depth in the coastal plain deposits and weathered gneiss. In areas with high conductivity (e.g., saturated clay or saltwater), the effective depth reduces to about 20–25 m because the signal attenuates faster.

What is the cost range for a VES survey in the Baltimore area?

A typical 1D VES survey with 4–6 soundings costs between US$540 and US$1,190, depending on site access, electrode spacing, and data processing level. 2D ERT profiles run higher due to the multi‑electrode setup and longer field time.

Can electrical resistivity distinguish between clean sand and contaminated soil?

Yes, but with caveats. Clean, saturated sand typically shows resistivity of 100–500 Ω·m, while hydrocarbon‑contaminated soil can exceed 1,000 Ω·m. However, clayey soils also show low resistivity, so the interpretation must be calibrated with at least one borehole or existing well log. In Baltimore's industrial fill areas, we always recommend a calibration point.

How does resistivity data integrate with other geotechnical tests?

Resistivity models provide continuous lateral coverage, while boreholes give discrete point data. We commonly combine VES with standard penetration tests (SPT) and laboratory soil classification. For seismic design, the resistivity profile helps define the soil/rock interface, which is then used to assign the site class per ASCE 7 based on VS30 from MASW or downhole measurements.

Are there any limitations to using VES in urban Baltimore?

Underground utilities (metal pipes, conduits, subway lines) can create strong metallic anomalies that mask the natural resistivity signal. Also, historic fill containing demolition debris, slag, or large metal objects produces erratic readings. In those cases, we shift the survey line or use a higher‑density array to isolate the cultural noise. We always conduct a utility locate before starting the survey.
