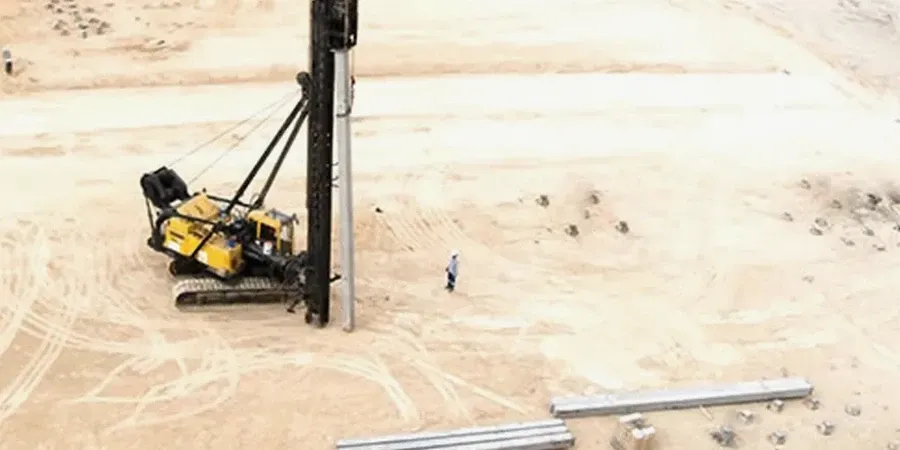

A common mistake contractors make when working in Baltimore is assuming the city's subsurface is uniformly stiff clay or sand. The reality is far more complex: the Inner Harbor area is underlain by soft estuarine deposits of the Patapsco Formation, while areas like Roland Park sit on residual soils from weathered mica schist. Without a site-specific driven pile design that accounts for these variations, piles can either punch through weak layers or refuse prematurely on shallow rock. That is why we always start with a proper subsurface exploration using test pits to correlate soil behavior with hammer energy and pile driving resistance.
The Fall Line splits Baltimore's geology: soft estuarine deposits south, residual Piedmont soils north. Driven pile design must honor this boundary.
Method and coverage
Regional considerations
Compare two Baltimore neighborhoods: in Fells Point, you are driving through soft organic silts of the Patapsco Formation that can cause piles to run away under hammer blows, leading to unexpected lengths and cost overruns. In contrast, near Patterson Park, the ground transitions quickly to dense sand and gravel overlying weathered gneiss, where premature refusal is common if the driving energy is not adjusted. A site-specific driven pile design in Baltimore must account for both extremes, using wave equation analysis (WEAP) to calibrate hammer performance for each discrete soil unit.
Standards that apply
ASCE 7-22 (Minimum Design Loads for Buildings and Other Structures), IBC 2021 (Chapter 18 – Soils and Foundations), ASTM D4945-22 (High-Strain Dynamic Testing of Piles), ASTM D1143-22 (Static Axial Compressive Load Test), FHWA NHI-16-009 (Design and Construction of Driven Pile Foundations)
Related services
Site Investigation & Soil Profiling
Boreholes advanced to 30 m depth with SPT sampling at 1.5 m intervals. We classify soils per ASTM D2487 and perform laboratory index tests (plasticity, grain size) to characterize the bearing layers.
Wave Equation & Pile Capacity Analysis
We run GRLWEAP simulations using actual hammer data to predict driving stresses, soil resistance, and pile lengths. The output is calibrated with PDA testing (ASTM D4945) during installation.
Static Load Test Design & Supervision
We design and oversee compression, tension, and lateral load tests per ASTM D1143 and D3689. Tests are instrumented with strain gauges to separate shaft friction from end bearing.
Typical parameters
Common questions
How does driven pile design differ between the Inner Harbor and the northern suburbs of Baltimore?
At the Inner Harbor, piles must penetrate up to 20 m of soft estuarine clay before reaching dense sand or weathered rock, so shaft friction is minimal and end bearing dominates. In northern Baltimore (e.g., Lutherville), residual soils from schist provide moderate shaft resistance but can have refusal on shallow bedrock. Each zone requires separate wave equation calibration and load test criteria.
What is a typical budget range for a driven pile design study in Baltimore?
For a medium-size project (50–100 piles), the geotechnical investigation and pile design package typically ranges between US$1,310 and US$4,150. This includes field borings, laboratory testing, wave equation analysis, and a design report. Larger projects with dynamic testing will be at the higher end.
Can driven piles be used in the soft clays of the Inner Harbor without deep overburden penetration?
Yes, but only if piles are designed as friction piles in the stiff clay layers below the soft surficial deposits, or if they reach the deeper sand/gravel strata. Typically, we recommend 12–18 m embedment to achieve 400–600 kN capacity per pile. A static load test is mandatory to confirm skin friction and settlement behavior.
