The geology of Baltimore is dominated by the Coastal Plain sediments in the south and the Piedmont metamorphic rocks to the north, creating a sharp contrast in soil conditions within a few miles. In the downtown and harbor areas, soft alluvial deposits, sands, and clays extend over 30 meters deep, with groundwater levels often within 2 to 3 meters of the surface. For tall buildings or bridges in these zones, pile foundation design becomes essential to transfer loads through the compressible layers down to the competent bedrock. Our team performs site-specific investigations combining borehole drilling with SPT sampling and piezocone penetrometer testing to characterize the stratigraphy, then uses those data to compute shaft friction and end-bearing resistance per IBC 2021 and ACI 543R guidelines.

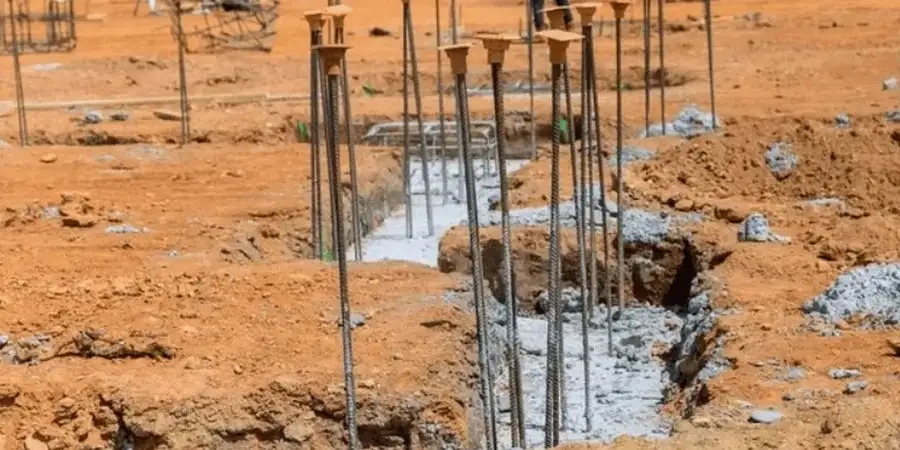

In Baltimore's harbor zone, pile foundation design must account for soft alluvial deposits up to 30 m deep with groundwater at shallow depth.
Method and coverage
- Field exploration with SPT and CPT soundings to 1.5 times the estimated pile tip depth
- Laboratory classification, moisture content, and unconfined compression tests on cohesive samples
- Analytical design using static methods (Meyerhof, Nordlund, α-method) and dynamic formulas
Regional considerations
Comparing the harbor district with the Towson area reveals a dramatic difference in subsurface behavior. In Fells Point, where soft organic clays and loose sands reach 20 meters, pile foundation design must evaluate negative skin friction from ongoing consolidation of fills — a condition that can reduce net capacity by 15 to 30 percent. Up in Mount Washington, where residual soil overlies weathered schist, the risk shifts to boulders that can damage pile toes or cause refusal before reaching the design depth. Without a proper subsurface investigation that includes continuous coring and SPT testing in both materials, a contractor might select the wrong pile type or underestimate required embedment, leading to differential settlement or structural distress.
Standards that apply
IBC 2021 (Chapter 18 – Soils and Foundations), ACI 543R (Design, Manufacture, and Installation of Concrete Piles), ASTM D3966 (Static Pile Load Testing), ASCE 7 (Minimum Design Loads for Buildings)
Related services
Geotechnical Investigation for Pile Design
Borehole drilling with SPT and undisturbed sampling to 40 m depth, plus in-situ vane shear and pressuremeter tests in soft clays. We provide stratification logs, groundwater monitoring, and strength parameters for every layer.
Static and Dynamic Capacity Analysis
Computation of ultimate and allowable axial capacity using Meyerhof, Nordlund, and α-methods for driven piles, and O'Neill & Reese for drilled shafts. We also perform CAPWAP analysis and PDA testing when required.
Pile Group Settlement and Lateral Load Design
Evaluation of group efficiency, consolidation settlement under pile caps, and lateral load distribution using p-y curves. We apply AASHTO LRFD for bridge foundations and IBC for building projects.
Typical parameters
Common questions
What is the typical cost range for a pile foundation design study in Baltimore?
For a standard commercial or residential project in Baltimore, the cost of a geotechnical investigation plus pile design report ranges between US$1,600 and US$5,840. The final price depends on the number of borings, depth of exploration, and whether load testing is included.
How deep do piles typically need to be in Baltimore soils?
In the harbor area, driven piles often reach 25 to 35 meters to find competent bearing strata in dense sand or decomposed rock. In the northern Piedmont zone, piles may only need 8 to 15 meters if rock is encountered earlier, but boulders can complicate installation.
What is the difference between a driven pile and a drilled shaft for a Baltimore site?
Driven piles (typically H-piles or prestressed concrete) are installed by impact or vibratory hammers and work well in granular soils where densification is beneficial. Drilled shafts (caissons) are excavated and cast in place, making them suitable for cohesive soils or where low vibration is desired near existing structures.
