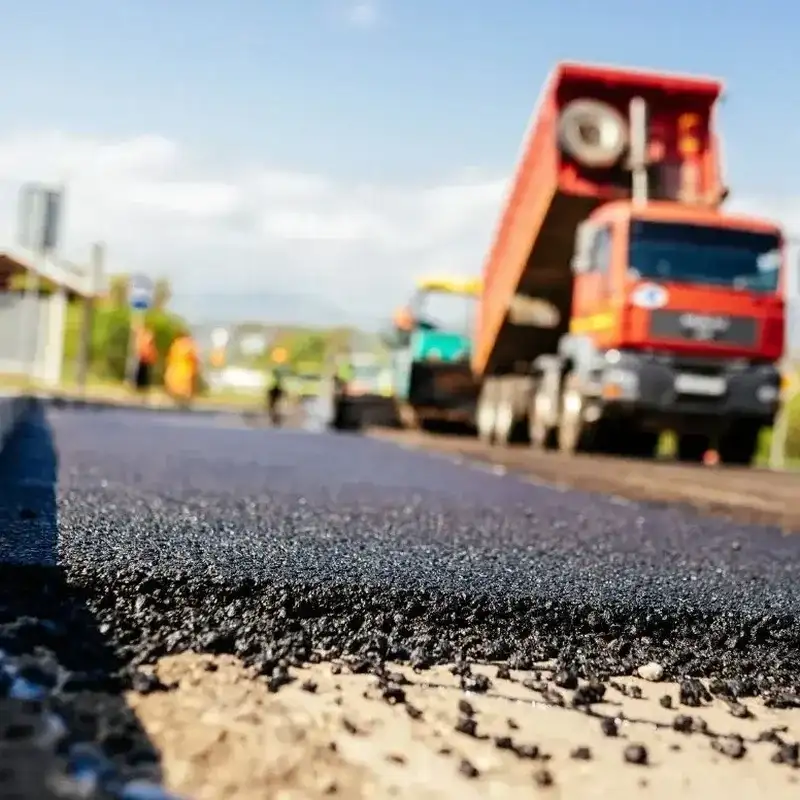

We worked on a commercial parking lot near the Inner Harbor last year where the existing subgrade was a mix of sandy fill and old river deposits. The client needed a new asphalt surface that could handle delivery trucks without cracking in the first season. For projects like that in Baltimore, we start with a thorough subgrade evaluation including moisture content and compaction tests. The local geology along the Patapsco River means many sites have soft, variable soils that require careful attention before any pavement section is designed. We also run CBR tests and resilient modulus determinations to get real numbers for the structural design. Before placing the first lift of asphalt, we often recommend a geotechnical study for pavements to map the variability across the site. That data feeds directly into the layer thickness calculations for the flexible pavement design.
Baltimore's variable subgrade conditions, from sandy fills to marine clays, require site-specific resilient modulus testing — not assumed values from tables — to avoid premature pavement failure.
Method and coverage
Regional considerations
Baltimore experiences a humid subtropical climate with hot summers and cold winters, plus about 42 inches of annual rainfall. This freeze-thaw cycling can wreak havoc on flexible pavements if the subgrade isn't properly protected. The biggest risk we see locally is water infiltration into the base course during heavy spring rains, followed by freezing temperatures that cause frost heave. That uplift then creates voids under the asphalt, leading to alligator cracking within a few years. We mitigate this by designing adequate drainage and using a thicker granular base to elevate the pavement above the frost zone. We also recommend stabilization of organic soils when the subgrade contains high organic content from old marsh areas near the coast.
Standards that apply
AASHTO Guide for Design of Pavement Structures 1993, AASHTO T 307 (Resilient Modulus of Soils), ASTM D1883 (CBR Test), ASTM D698 / D1557 (Proctor Compaction), ASTM D4318 (Atterberg Limits)
Related services
Subgrade Soil Investigation
Boring, sampling, and laboratory testing including CBR, resilient modulus, and compaction characteristics to classify the foundation soil.
Traffic Load Analysis
Estimation of equivalent single axle loads (ESALs) based on projected traffic volume and vehicle types for the design life.
Pavement Structural Design
Layer thickness calculations using AASHTO 1993 and Mechanistic-Empirical methods, optimized for local materials and climate.
Drainage and Subgrade Improvement
Recommendations for underdrains, geotextiles, and subgrade stabilization to protect the pavement from water damage and frost action.
Typical parameters
Common questions
How is flexible pavement design different in Baltimore compared to other cities?
Baltimore's coastal geology means many sites have soft marine clays or old fill materials with low bearing capacity. The design must account for higher moisture content and potential frost heave. We also consider the urban environment where excavation depth may be limited by existing utilities, so thinner sections with better materials are often required.
What testing is needed before designing a flexible pavement?
A minimum program includes soil borings to 5-10 feet depth, CBR tests, Atterberg limits, grain size analysis, and Proctor compaction. For heavy traffic or critical projects, we recommend resilient modulus testing (AASHTO T 307) to get a site-specific Mr value instead of using correlations.
How much does flexible pavement design cost in Baltimore?
Typical costs range between US$1,930 and US$5,050 depending on the number of borings, lab tests, and design complexity. A basic parking lot design with two borings and standard tests falls at the lower end, while a road project with multiple test pits and resilient modulus testing is at the higher end.
How long does a flexible pavement design take?
A standard project takes 2 to 4 weeks from field sampling to final report. The timeline depends on lab curing times for compaction and CBR tests, plus the number of traffic load scenarios. We can expedite to 10 business days for urgent projects with a surcharge.
