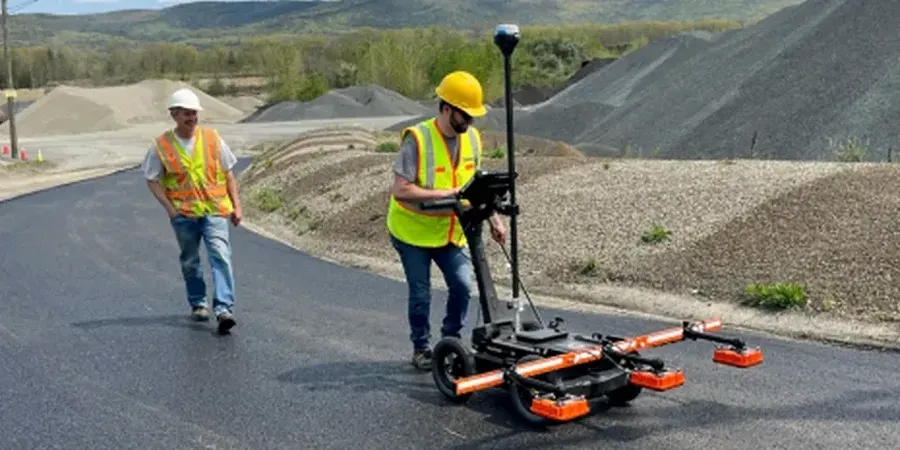

Baltimore sits on the Atlantic Coastal Plain, with elevations ranging from sea level at the Inner Harbor to about 480 feet in the northwestern reaches. Over 1,500 miles of aging utility lines run beneath its streets, many dating to the 19th century. A GPR (Ground Penetrating Radar) survey is often the fastest way to locate these buried assets without excavation, especially when paired with a study of test pits to verify anomalies in shallow fill zones. We consistently deploy GPR across the city's variable geology, from the sand and gravel of the Patapsco Formation up to the deep clay deposits underlying the downtown core.
In Baltimore's conductive coastal soils, lower-frequency antennas (250 MHz) often penetrate deeper but reduce resolution—site-specific calibration is essential.
Method and coverage
- Antenna frequencies: 250 MHz for depths up to 6 m, 900 MHz for shallow utilities (< 1.5 m)
- Processing software: RADAN 7 for post-acquisition filtering and migration
- Data output: time-slice maps, 2D profiles, and CAD-compatible utility plans
Regional considerations
Baltimore's industrial legacy is marked by buried fuel tanks, old trolley tracks, and undocumented fill from the 1904 Great Fire. These features create radar clutter and false targets that can mislead inexperienced operators. We mitigate this by cross-referencing GPR hyperbolas with historical Sanborn maps and municipal as-built records. Missing a high-voltage conduit or a gas main during excavation can trigger costly shutdowns or safety incidents. Our work reduces that risk by delivering georeferenced utility maps that match Baltimore's state-plane coordinate system, directly importable into project CAD files.
Process video
Standards that apply
ASTM D6432-19 (Standard Guide for GPR), ASCE 38-22 (Standard Guideline for Utility Subsurface Utility Engineering), IBC 2021 (Chapter 18 – Soils and Foundations)
Related services
Utility Mapping & Clear-out
Pre-excavation GPR to locate water mains, gas lines, telecom conduits, and electrical ducts. We mark targets on the surface with paint or flags and deliver a georeferenced CAD plan. Typical grid spacing is 1.5 m, with 0.5 m spacing near known high-density utility corridors like Pratt Street.
Void & Anomaly Detection
Targeted scans for subsurface voids, sinkholes, and undocumented structures—common near Baltimore's aging brick sewers and beneath roadways. We use 400 MHz and 250 MHz antennas in tandem to differentiate between void signals and saturated clay lenses. Results include cross-sectional profiles and depth-coded anomaly maps.
Typical parameters
Common questions
How deep can GPR penetrate in typical Baltimore soils?
In the sandy Patapsco Formation, we often reach 4–5 m with a 250 MHz antenna. In the clay-rich Arundel Formation, penetration drops to 2–3 m due to higher electrical conductivity. For deeper targets (e.g., old foundations below 5 m), we recommend supplementing GPR with a MASW survey to image velocity contrasts.
What is the cost range for a GPR survey in Baltimore?
For a standard utility clear-out on a 0.5-acre site, expect between US$8.670 and US$1.390 depending on grid density, number of antenna frequencies, and access constraints. Larger areas or void-detection projects fall at the higher end of that range.
Do you need to close streets or get permits for GPR surveys in Baltimore?
GPR is non-invasive and typically does not require street closures. For surveys on public rights-of-way, we coordinate with the Baltimore City Department of Transportation for a minor work permit (often same-day). On private property, no permit is needed, but we always notify utilities via the 811 One-Call system before scanning.
