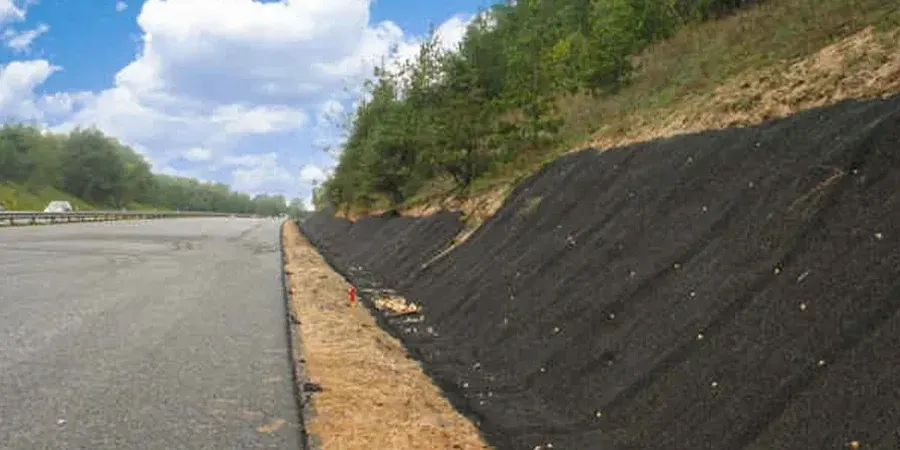

Road embankment design in Baltimore must comply with ASCE 7-22 and the latest IBC provisions, particularly for projects within the Inner Harbor area where soft estuarine clays and variable fill depths dominate. The city's position on the Fall Line — where the Piedmont Plateau meets the Atlantic Coastal Plain — creates abrupt changes in subsurface conditions within a single project site. For embankments exceeding 15 feet in height, we incorporate drenaje vial systems to control pore pressures and avoid stability failures during storm events. A thorough site investigation should also include ensayo SPT at regular intervals to capture stratification and strength variability across the alignment.
The Fall Line geology beneath Baltimore means embankment designers face Piedmont residual soils in the west and Coastal Plain sediments in the east within the same corridor.
Method and coverage
- Boreholes spaced at 50 to 100 m intervals, depending on embankment height and variability
- Standard Penetration Tests (ASTM D1586) combined with undisturbed thin-wall sampling for soft clays
- Consolidation testing to evaluate primary and secondary settlement rates
Regional considerations
A common error in Baltimore road projects is assuming uniform bearing capacity across the embankment footprint. Contractors often place fill without verifying the depth of the underlying clay layer, leading to excessive total settlement or, worse, a rotational failure during the final lift. Another frequent mistake is neglecting to install vertical drains in saturated silt deposits, which can cause pore pressure buildup and slope instability months after construction. Our team flags these issues during the design phase and recommends staged construction with settlement platforms when time allows.
Standards that apply
ASCE 7-22 (Minimum Design Loads for Buildings and Other Structures), IBC 2021 (Chapter 18: Soils and Foundations), ASTM D1586-18 (Standard Test Method for SPT), ASTM D2435 (One-Dimensional Consolidation Properties of Soils)
Related services
Embankment Slope Stability Analysis
Limit-equilibrium and finite-element modeling for long-term and rapid-drawdown conditions, including seepage analysis for perched water tables common in Baltimore's weathered schist zones.
Settlement and Improvement Design
Calculation of primary consolidation and secondary compression in soft clays, with recommendations for surcharging, wick drains, or lightweight fill alternatives to meet post-construction settlement criteria.
Typical parameters
Common questions
How does Baltimore's geology affect road embankment design?
Baltimore sits on the Fall Line, so the western half of the city has residual soils from weathered schist and gneiss, while the eastern half has unconsolidated Coastal Plain sediments — sand, silt, and clay. An embankment design must account for this transition within individual project sites to avoid differential settlement.
What is the typical cost range for road embankment design in Baltimore?
The geotechnical investigation and design for a road embankment in Baltimore typically ranges from US$1.430 to US$4.340, depending on embankment height, number of boreholes, and laboratory testing requirements. Larger projects with Improvement can exceed this range.
What soil tests are required for embankment design in Baltimore?
Essential tests include Standard Penetration Tests (ASTM D1586), Atterberg limits (ASTM D4318), consolidation tests (ASTM D2435) on soft clay layers, and triaxial CU tests (ASTM D4767) for shear strength parameters. Proctor compaction (ASTM D698) is needed to establish fill placement criteria.
Do I need a settlement analysis for a low-height embankment in Baltimore?
Yes, even embankments under 3 m can trigger significant settlement when built over the soft estuarine clays near the harbor or over compressible fill from historical industrial use. A settlement analysis identifies whether preloading or Improvement is needed to meet pavement grade tolerances.
